The reversing camera interface is a system that helps you park by showing live images from a camera at the back of your vehicle. It sends those images to your car's display screen, making it easier for you to see what's around you when you're backing up.
Installation :
Plug&Play InterfaceScreen Size :
12.3''Video Output :
for CVBS inputInstallation Guide :
SupportCar Fitment :
for Ford SYNC4 camera interfaceNight Vision :

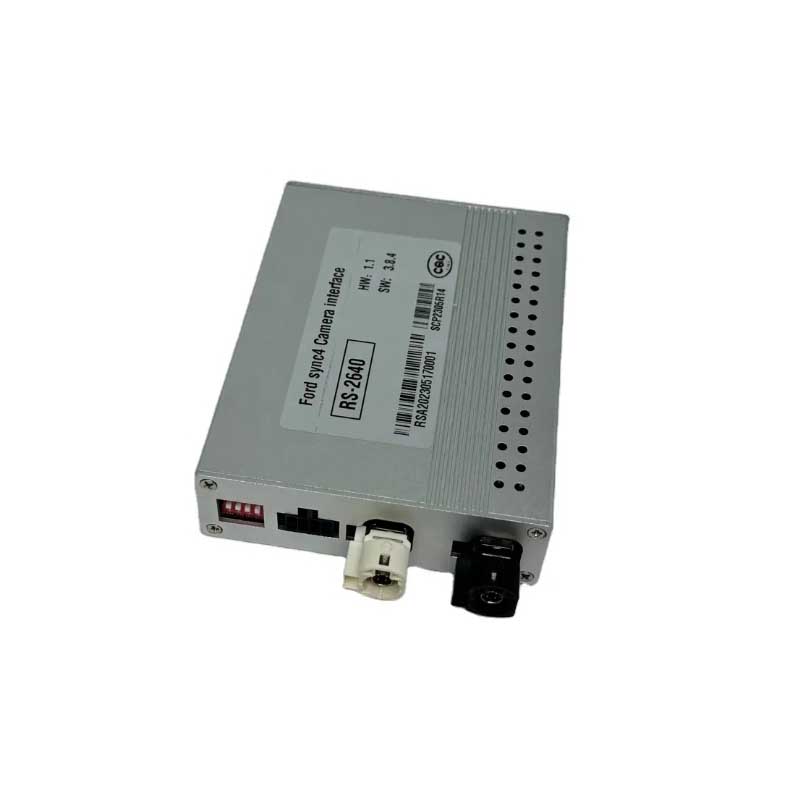

supportFord SYNC4 Front Rear Camera Interface Adapter
This reverse camera interface works with Ford Sync4 12.3” factory screens that have a resolution of 1200x1080. It connects your front and rear cameras so you can see what’s around your car while parking. The installation is easy with a plug-and-play harness, so it won’t damage anything in your car. Installing this kit can really help with parking. Just a heads-up, the current software doesn’t support dynamic parking guidelines or parking sensor graphics. We’re open to any custom features you might want!
Car Fitment
| Model Number | Suitable Vehicle |
| RS-9102 for Ford Sync4 | Ford Sync4 System,12.3'',1200x1080 factory screen |
Camera Video Interface Performance Description:
1. You can update the firmware using a micro SD card.
2. It has a Plug&Play interface, so it won’t damage any cables.
3. The LVDS output supports screens up to 1200x1080.
4. There are no parking guidelines or sensor graphics, but you can customize those.
5. It has inputs for a front camera (DVR optional) and a rear camera, with auto-switching.
6. It works with NTSC/AHD camera formats.
7. A Plug&Play installation guide is included.
Product application:
Multi-camera Integration:
You can connect multiple camera feeds, like front, rear, and 360-degree cameras. This lets the driver switch views to see what's around the car, helping to avoid scratches and keeping reversing safe.
Low-light Environment Enhancement:
In low light or at night, the system improves the camera images to make them brighter and clearer. This helps the driver see what's behind the car, making it safer to back up at night.
Reverse Assistance:
When you put the car in reverse, the camera kicks in and shows the view on the screen inside. This helps the driver spot any obstacles or people behind the car and adjust their direction to prevent collisions.
Product Packaging:
The product comes in sturdy corrugated boxes with several layers of protection to keep it safe during transport.
Car Camera Interface Parameters:
| running voltage : | 9-16v, 14.4 v ( rated) |
| storage temperature : | -30 - 85°C |
| operating temperature : | -30 + 75 °C |
| ambient humidity : | ≤98% (at 45°C), 65 + 5% (rated) |
| quiescent current : | less than 3mA |
| shutdown current : | 300mA (clock is on) |
| ≤ 1.5A,when the USB charging current is ≥ 3A,the host computer of the radio and receiver start the circuit protection function ≤ 1.5A,when the USB charging current is ≥ 3A,the host computer of the radio and receiver start the circuit protection function. | |
FAQ：
Are you a trading company or a manufacturer?
Roadpassion is a manufacturing company specializing in the research and development of intelligent vehicle safety assistance systems.Our team is composed of experienced engineers,professional sales and enthusiastic and responsible after-sales personnel.RoadPassion has obtained 7 invention patents,CE,FC,Rohs,7 utility model patents,24 software Copyrights and other intellectual property rights.In addition,we are working hard to develop new products to meet different requirements.The company is located in Guangzhou,welcome to visit.
Is this product suitable for me?
Different vehicle models need to have the corresponding models of products installed.For details,please refer to the product parameters.You can also contact us and provide detailed information such as the model and production year of your car.Our staff will confirm for you whether your car can use our equipment.
What if there is no product for my car model?
We are glad to provide you with a customized service.Please consult our team for detailed customization process.
Can I get a sample?
Yes,you can place an order to purchase our sample.
Are your products reliable?
Roadpassion has factories and offices officially authorized in China,and our products are also applicable to EU regulations.We offer a 12-month warranty period.Meanwhile,we have a professional after-sales team to solve any of your problems.
How to install the product?
We have provided instructions for the product.Please install it according to the instructions above.If you encounter any difficulties,please contact us in time and we will be glad to offer help!
The reverse camera interface connects your front and back cameras to the car's original screen. It shows the camera feed along with parking lines to help you park. Plus, it's easy to install with a plug-and-play setup and comes with an installation guide.
