The Digital Side-view Monitor helps reduce blind spots and gives you a wider view. It also improves visibility in bad weather and at night, making driving safer.
Installation :
Plug InstallationScreen Size :
5.7-inchDisplay Resolution :
1440*810Camera Pixel :
1920*1080 60fpsSensor :
CMOS sensorLenz :
IP67 LenzHD Digital Side Mirror Camera Kit With In-Car Dual Display
The digital side view mirror monitor system includes an exterior camera and interior screens. Unlike regular door mirrors, the camera captures clear rear views at 1080p and 60fps, showing real-time images on the inside monitors. Even in tough weather like rain, fog, or at night, the waterproof and fog-proof camera keeps sending clear images, which helps to cut down on the blind spots you usually get with traditional mirrors. This tech is becoming essential for safer driving.
Features
1920*1080 60fps Cameras
- Comes with a SONY CMOS sensor, 2 million pixels.
- Has an IP67 lens that's waterproof and designed to prevent fogging.
- Easy to install without causing any damage, and works with all vehicles.

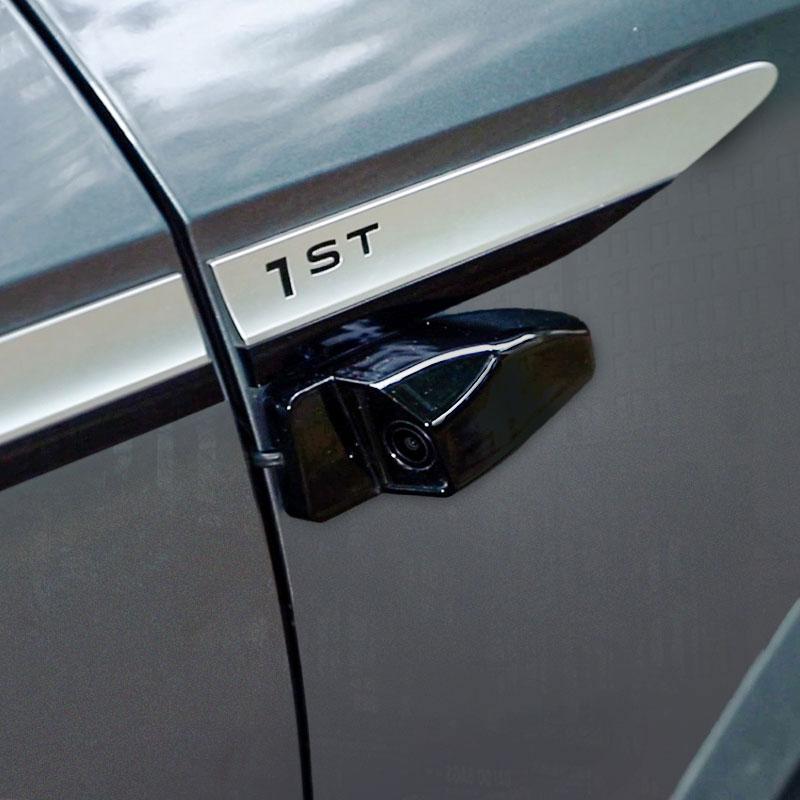

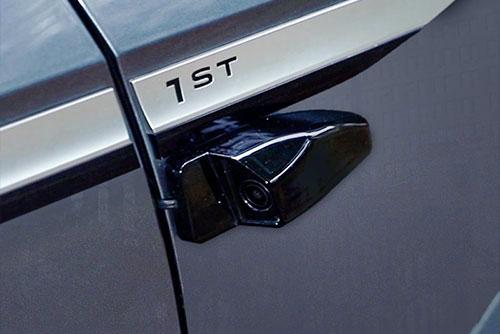

- You can place the external cameras on either side of the front door or on the front fender.
5.7 inch Dual Monitors
- Each unit has two 5.7-inch touch screens (with a resolution of 1440x810) and comes with a custom bracket for easy installation.
- You can adjust the viewing angle and it has a backlight display.

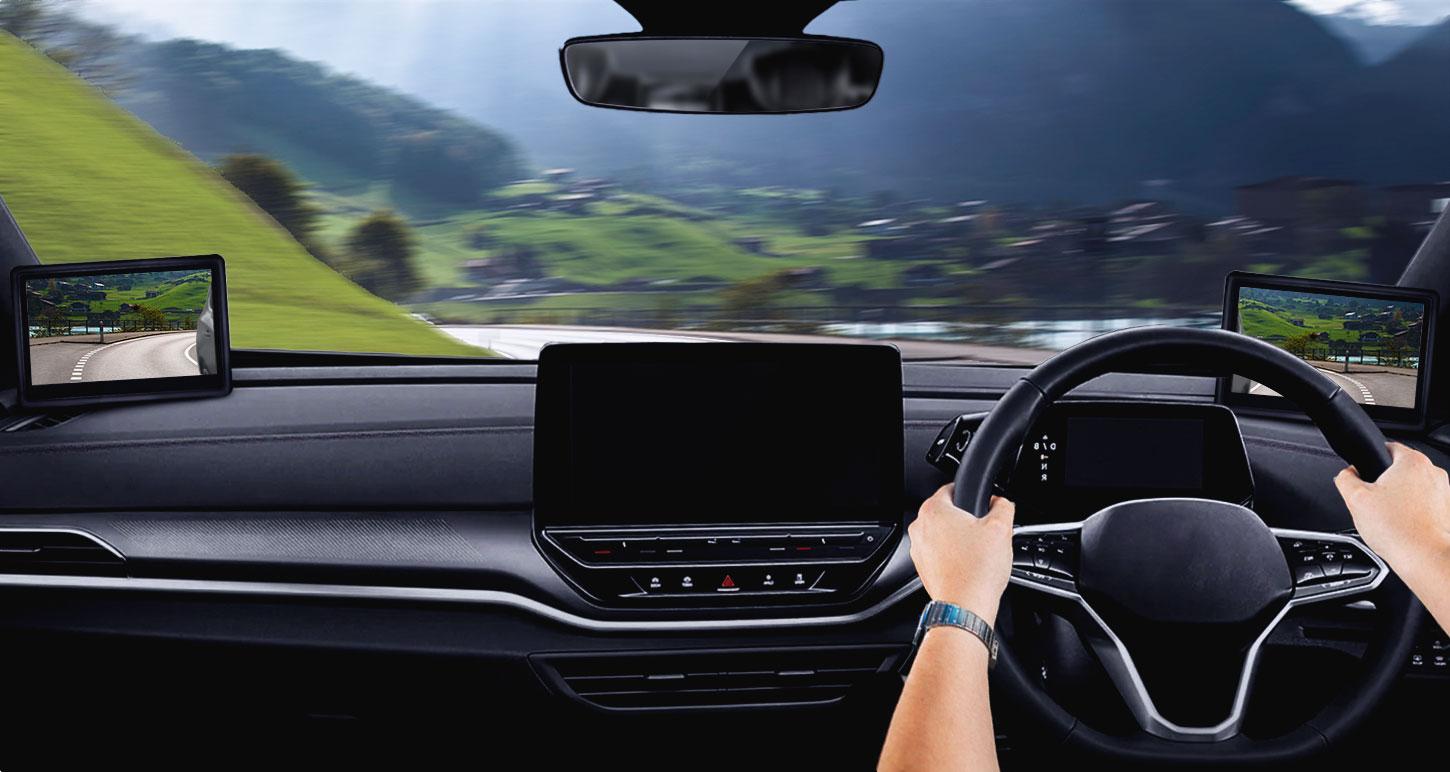

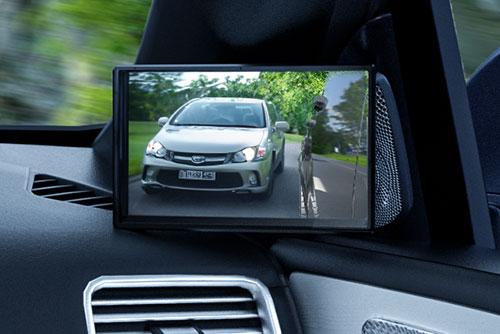

- The monitor is mounted on the instrument panel and the A-pillars using sturdy brackets.
Advantages
Conventional rearview mirror
When it’s raining or foggy, you can’t see very well. The heated exterior mirrors are nice, but they don’t do much to fix the problem.
Driving at night can be tough too. If another car's headlights are really bright, it can blind you for a moment and make things dangerous.
There’s also the blind spot issue. Regular rearview mirrors let you see cars behind you, but they don't help you gauge how far away they are. Plus, you might miss seeing pedestrians, bikes, or other small stuff nearby.

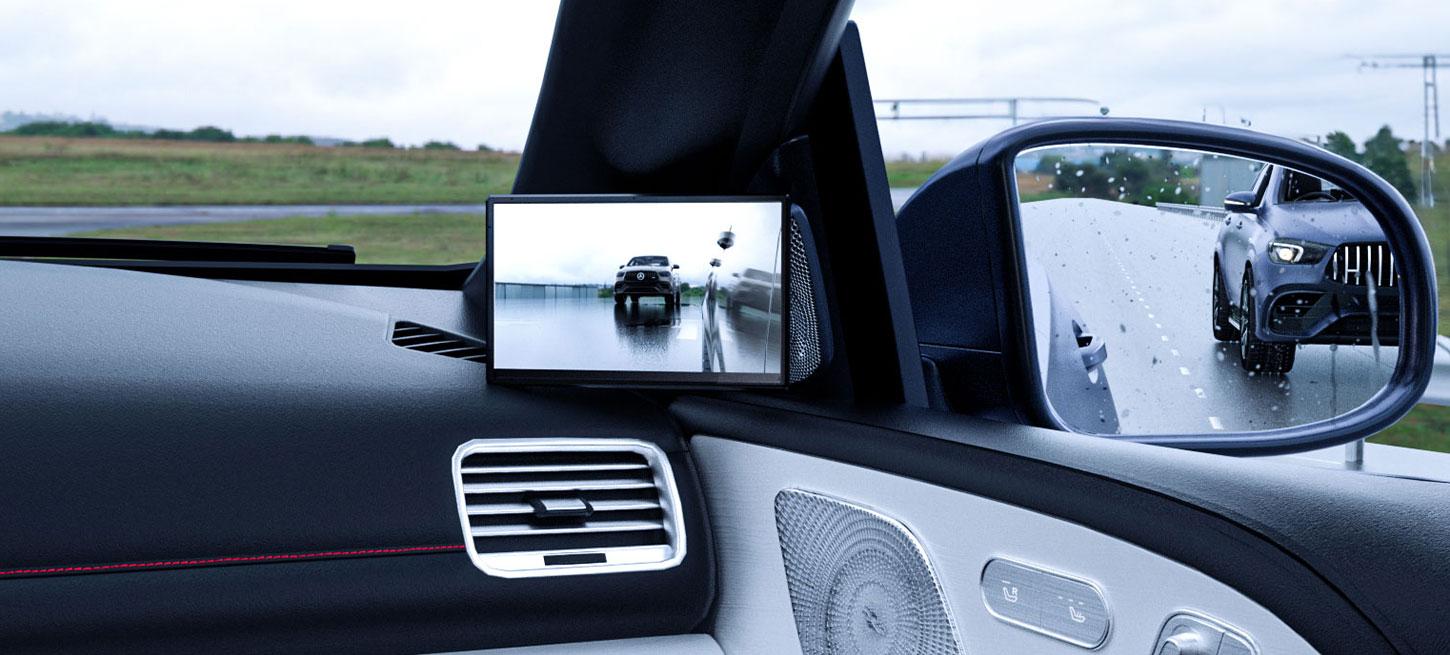

Digital Side View Monitors

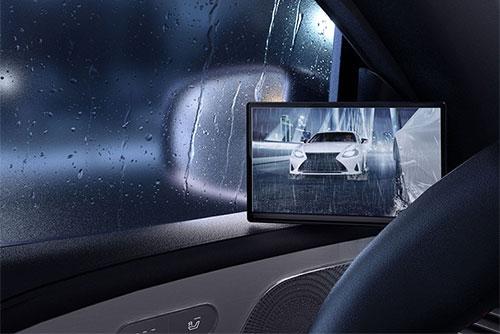

The electronic rearview mirror is less impacted by weather conditions. All it needs is a hydrophobic and waterproof lens, and the rest is handled by an algorithm and the car's display.
It also reduces light issues. Thanks to the night vision feature, you can still see in low light. Plus, if there’s a lot of light coming from behind, like a high beam at night, the glare can be minimized with algorithms.
You also get a wider view. Unlike traditional mirrors that have a fixed shape and size, electronic rearview mirrors use different sensors and cameras positioned at various angles to give you more images.
System Performance
1. This system runs on a B+ power supply and an ACC signal, giving you reliable quality and performance.
2. The cameras on either side of the vehicle capture images of the road, which get turned into high-definition video signals at 1080P@60fps and sent to the main control unit.
3. The camera and electronic rearview mirror keep working while you drive, providing quick video imaging.
Product Item Parameters

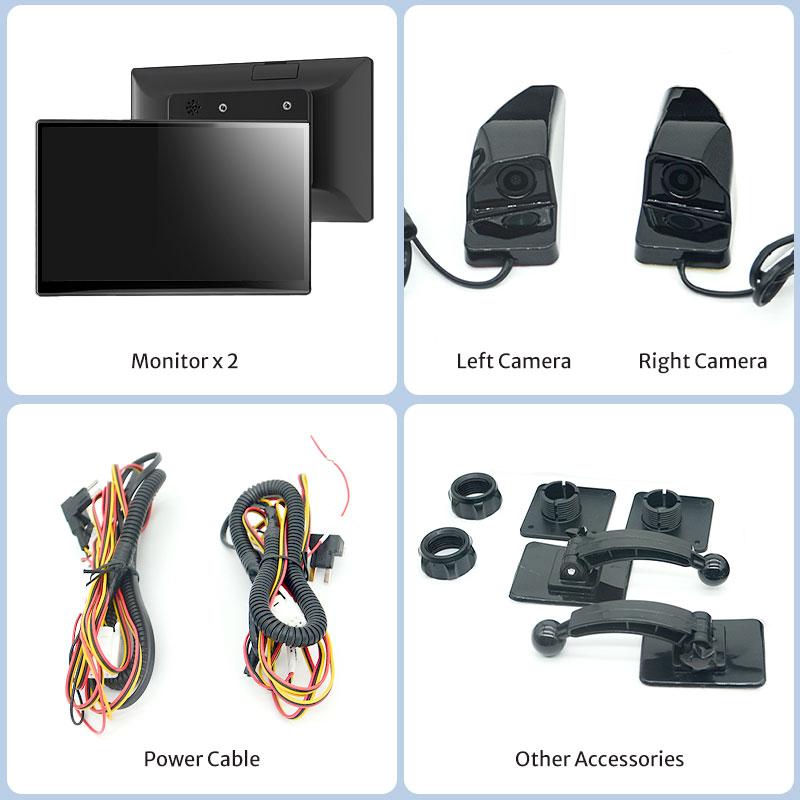

The Digital Side View Monitors include two 5.7-inch touch screens and two waterproof cameras with 1080P HD resolution.
| Item | Parameters |
| Cold Start Time | ＜5s |
| Hot Start Time | ＜1s |
| Picture Delay Time | ＜50ms |
| Camera Input | TVI |
| Pixel Camera | 1920*1080 60fps |
| Camera Waterproof Level | IP67 |
| Display Size | 5.7inch |
| Display Resolution | 1440*810 |
| Operating Voltage | DC 12V |
| Voltage Range | DC 9 - DC 16V |
| Maximum Working Current | ＜0.5A@12V |
| Quiescent Current | ＜0.1mA |
| Operating Temperature | -20℃-+70℃ |
Packages&Shipment
●Delivery Time：3-5 workdays for sample ready, 7-15days for bulk order.The specific lead time depends on the items and the quantity of your order.
●Packing Details：Packing goods in neutral white boxes and brown cartons. We can do OEM package for you.Welcome send your requirements in detail, we can design the package for you.
●Payment Terms：by T/T in advance, Credit Card, Paypal and Western Union.
●Transportaion Modes：International Express, DHL, UPS, FEDEX, TNT, Express, By Air, By Sea, or as customers' requests.
