The reverse image system is a handy feature in today’s cars. It gives you a clear live view of what's behind you through a camera at the back, making it easier and safer to back up.
Installation :
Plug&Play InterfaceVideo Output :
LVDSCar Fitment :
for Ford SYNC3 SYNC2Audio output :
Two -channel CD stereophonic sound, can extendVioce control :
Apple Siri Google AssistantNight Vision :
supportSupport Phone System :
Android IOSFord Backup Camera Decoder Kit with Intelligent Dynamic Guidance
This reverse camera interface is made for Ford Sync2 and Sync3 factory screens. It lets you connect both front and backup cameras to show what’s around your vehicle, making parking easier. You can install it easily with the plug-and-play harness, so there’s no need for complicated setups. It's a handy addition to your car, especially since it has built-in dynamic parking guidelines that move with your steering wheel, helping you park safely.
Car Fitment
| Model Number | Suitable Vehicle |
| RS-9102 for Ford Sync3 / Sync2 | Focus 2017-2020 |
| Kuga | |
| Puma | |
| Fiesta | |
| Transit | |
| Mondeo | |
| Ecosport |
Camera Video Interface Performance Description
1. You can update the firmware using a micro SD card.
2. It has a Plug&Play interface that won’t damage any cables.
3. The LVDS output works with 800x480, 400x240, or 1024x480 screens.
4. It features Dynamic Parking Guidelines with radar-detection images.
5. There are inputs for both front (DVR optional) and rear cameras that switch automatically.
6. The camera format it supports is NTSC.
7. You can overlay the car's factory parking sensors.
8. It supports camera input, DVR, and front camera.
9. It's compatible with Sync2 and Sync3 (800x480 screen).
10. An installation guide is included.
Reverse Camera Interface Parameters
| Product Parameters | Item | Performance |
| BATT/ACC range | 7V – 25V | |
| Stand.by power drain | <5mA | |
| Power | 0.3A@12V | |
| Power consumption | 2.4W | |
| Video input | 0.7V˜1V | |
| Video input formats | NTSC | |
| AV-video amplitude | 0.7V with 75 Ohm impedance | |
| Temperature range | -40°C to +85°C | |
| Weight | 195g | |
| Dimensions | 182 x 24 x 100 mm (B x H x T) |
Company Profile
Guangzhou Roadpassion Electronic Technology CO.,Ltd is established in 2011,we are focused on Car electronics, such as Video interfaces,wireless carplay,Camera Interface,TV Free in motion,Car PAS Parking Retrofit Camera interfaces,GPS Navigation etc..
We are running a professional Research & Development lab in Guangzhou city to make sure every device come from us will be supported by Excellent Pre-sales & After-sale services.With experienced engineers and a good sales service team,we are able to provide customers with high-tech products, technical support and after-sales service. 90% of our products are exported all over the world!
We focus on customers' demands and pay more attention to the quality of our products and services,because we want to benefit all of our customers.We sincerely hope to explore cooperative opportunities with customers at home and abroad on the basis of mutual benefits and common development.

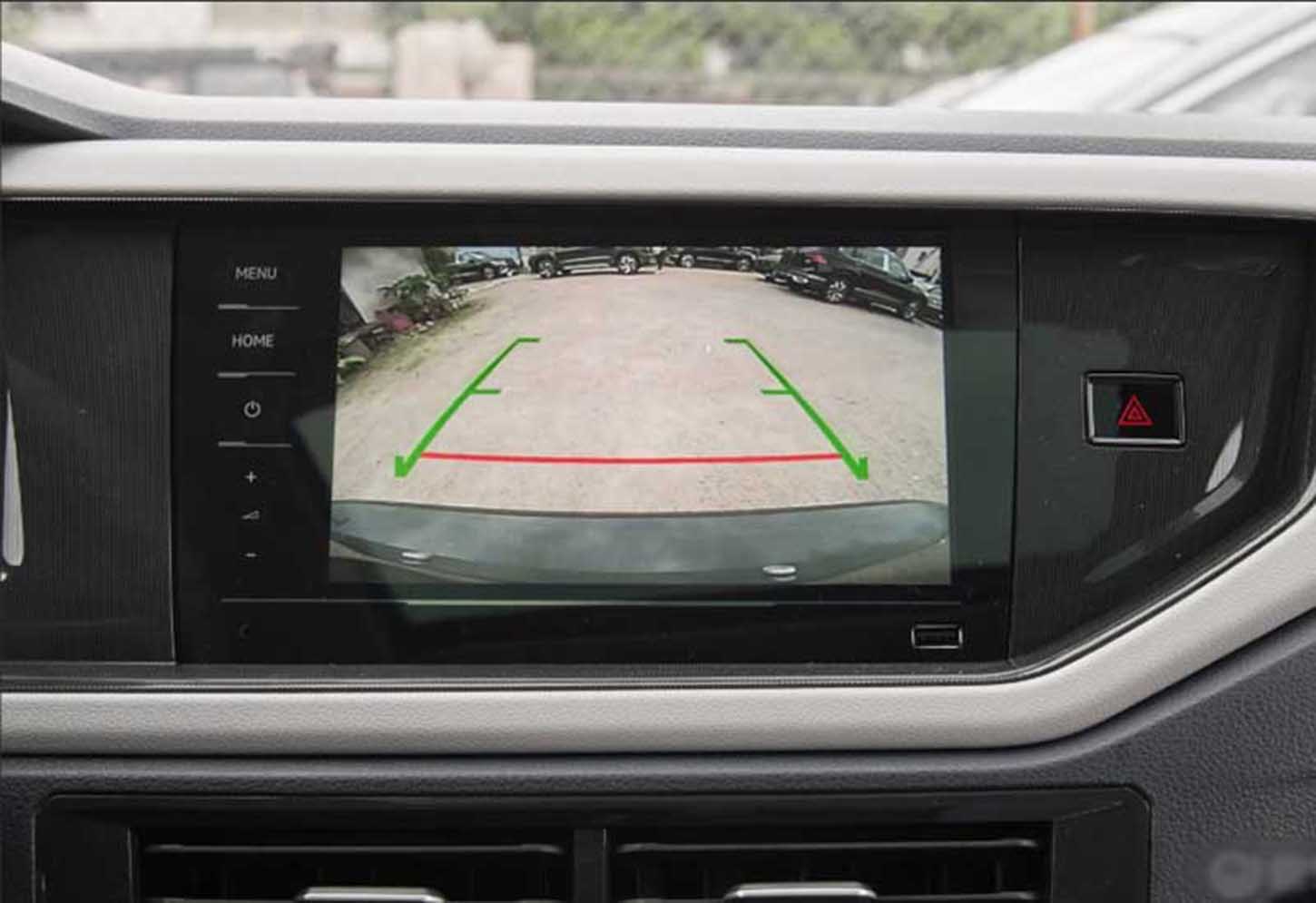

The reverse camera interface connects your front and back cameras to the car's original screen. It shows the camera feed along with parking lines to help you park. Plus, it's easy to install with a plug-and-play setup and comes with an installation guide.
Details
reverse camera interface is designed to integrate front and rear camera to car's factory screen,showing camera image with parking guidelines to assist parking.And it's plug and play installation,comes with installation guide.
Details

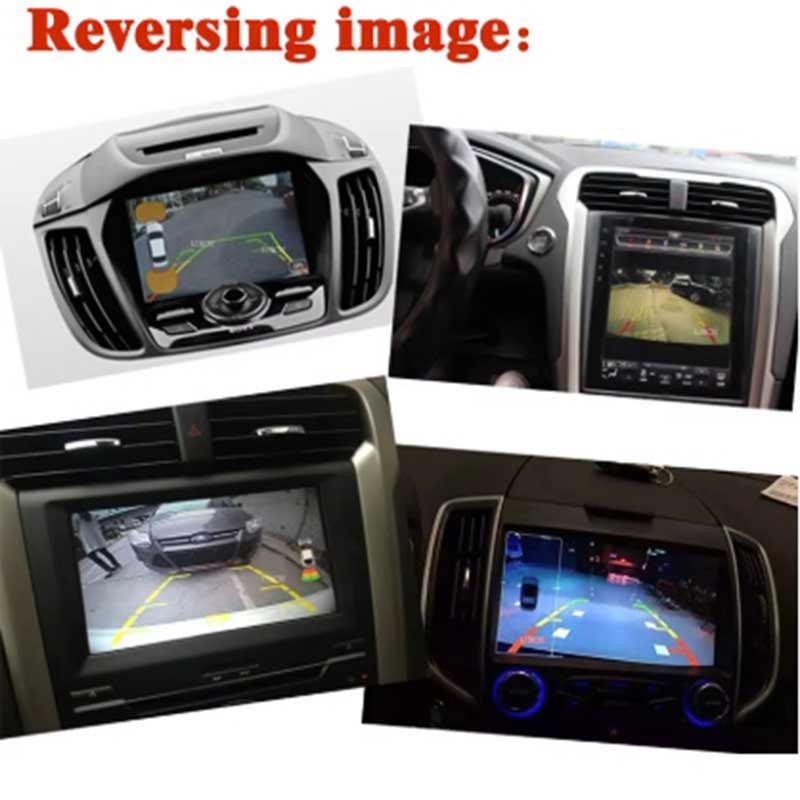

The reverse image system is a handy feature in today’s cars. It gives you a clear live view of what's behind you through a camera at the back, making it easier and safer to back up.
Details

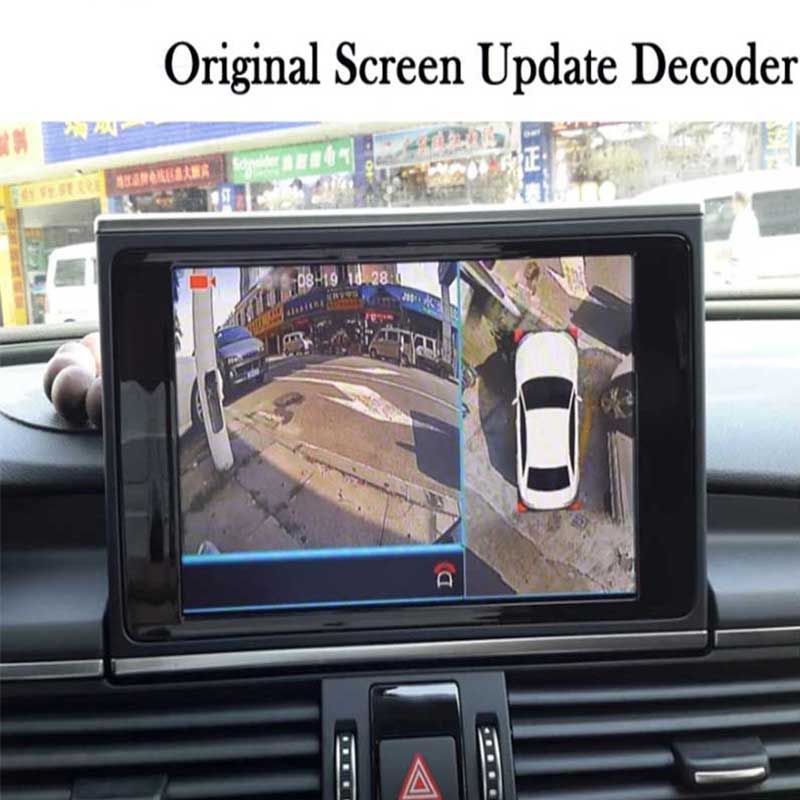

A camera interface is a tool used in cars for reversing. Its main job is to take the live image from behind the vehicle and show it on the car's multimedia screen.
Details
The reversing camera interface is a system that helps you park by showing live images from a camera at the back of your vehicle. It sends those images to your car's display screen, making it easier for you to see what's around you when you're backing up.
Details
